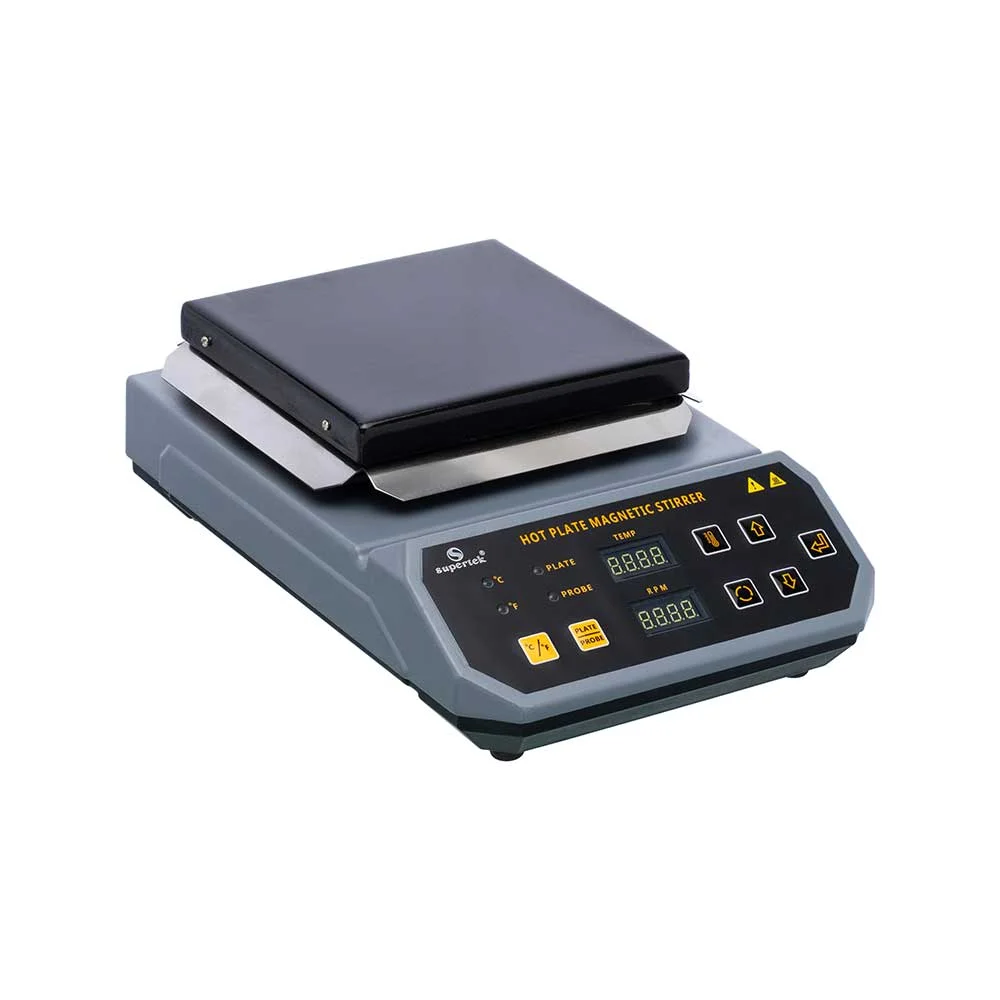

HOT PLATE MAGNETIC STIRRER, DIGITAL


Digital hot plate magnetic stirrer is used for simultaneous heating and stirring of solutions.
Features
* Measure and control the temperature of either hot plate or liquid solution
* LED display for showing actual/set temperature and RPM
* Top plate is available in 2 materials: Silver anodized aluminium and Ceramic
coated stainless steel
* Ceramic coating offers chemical resistance against strong acid and bases
* Stirring is done by DC motor
* Independent control for heating and stirring
* Integrated circuit for precise control of heating and stirring
* Selection of hot plate and probe temperature
* Spill proof design
* High quality, fine finished textured powder coated aluminium body
* Temperature probe Pt100
* Includes support rods and clamps
* With non-slip rubber feet
Technical Specifications
* Top Plate Dimensions: 180 x 180 mm
* Temperature range of top plate: Up to 380°C, Resolution 1°C
* Temperature accuracy ± 1°C
* Heater Rating: 800 W
* Stirring speed: Up to 1500 RPM
* Input voltage: 220 V AC ± 10%, 50-60 Hz
* CE certified

Capacity Top Plate Max. Temperature Pack
Material of top plate (°C) Size
CH12395D/2A 5L Aluminium 350 1
CH12395D/2C 5L Ceramic Coated 380 1

SKU: CH12395D Category:
Capacity

5L

Top Plate Material

Aluminium, Ceramic Coated

Max. Temperature of top plate (°C)

380, 350

Pack Size

1
